Csound is an incredibly powerful and versatile software synthesis program. Drawing from a toolkit of over 450 signal processing modules, one can use Csound to model virtually any commercial synthesizer or multi-effects processor. Csound literally transforms a personal computer into a high-end digital audio workstation an environment in which the worlds of sound-design, acoustic research, digital audio production and computer music composition all join together in the ultimate expressive instrument. However, as with every musical instrument, true virtuosity is literally the product of both talent and dedication. You will soon discover that Csound is the ultimate musical instrument. But you must practice! In return, it will reward your commitment by producing some of the richest textures and uniquely beautiful timbres you have ever heard. In the audio world of Csound, knowledge and experience are the key... and your imagination the only limitation.

The goal of this chapter is to get you started on Csound's road of discovery and artistry. Along the way we'll survey a wide range of synthesis and signal processing techniques and we'll see how they're implemented in Csound. By the end we'll have explored a good number of Csound's many possibilities. I encourage you to render, listen, study and modify each of my simple tutorial instruments. In so doing, you'll acquire a clear understanding and appreciation for the language while laying down a solid foundation upon which to build your own personal library of original and modified instruments. Furthermore, working through the basics covered here will prepare you to better understand, appreciate and apply the more advanced synthesis and signal processing models that are presented by my colleagues and friends in the subsequent chapters of this book.

Now there are thousands of Csound instruments and hundreds of Csound compositions on the CD-ROM, that accompanies this text. Each opens a doorway into one of Csound's many worlds. In fact, it would take a lifetime to fully explore them all. Clearly, one way to go would be to compile all the orchestras on the CD-ROM, select the ones that sound most interesting to you and merely sample them for use in your own compositions. This library of presets might be just the collection of unique sounds you were searching for and your journey would be over.

However, I believe a better way to go would be to read, render, listen and then study the synthesis and signal processing techniques that fascinate you most by modifying existing Csound orchestras that employ them. Afterward you should express this understanding through your own compositions — your own timbre-based soundscapes and sound collages. Surely through this active discovery process, you will begin to develop your own personal Csound library and ultimately your own voice.

To follow the path I propose, you'll need to understand the structure and syntax of the Csound language. But I am confident that with this knowledge, you'll be able to translate your personal audio and synthesis experience into original and beautiful Csound-based synthetic instruments and some truly unique and vivid sound sculptures.

To that end, we'll begin by learning the structure and syntax of Csound's text-based orchestra and score language. Then we'll move on to explore a variety of synthesis algorithms and Csound programming techniques. Finally we'll advance to some signal processing examples. Along the way, we'll cover some basic digital audio concepts and learn some software synthesis programming tricks. To better understand the algorithms and the signal flow, we'll block-diagram most of our Csound instruments. Also, I'll assign a number of exercises that will help you to fully understand the many ways that you can actually work with the program.

Don't skip the exercises. And don't just read them. Do them! They are the keys to developing real fluency with the language. In fact, you may be surprised to discover that these exercises teach you more about how to work with Csound than any of the descriptions that precede them. In the end, you should have a good strong foundation upon which to build your own library of Csounds and you will have paved the way to a deeper understanding of the chapters that follow.

So, follow the instructions on the CD-ROM; install the Csound program on your computer; render and listen to a few of the test orchestras to make sure everything is working properly; and then let's get started!

What is Csound and How Does it Work?

Csound is a sound renderer. It works by first translating a set of text-based instruments, found in the orchestra file, into a computer data-structure that is machine-resident. Then, it performs these user-defined instruments by interpreting a list of note events and parameter data that the program reads from: a text-based score file, a sequencer-generated MIDI file, a real-time MIDI controller, real-time audio, or a non-MIDI devices such as the ASCII keyboard and mouse.

Depending on the speed of your computer (and the complexity of the instruments in your orchestra file) the performance of this score can either be auditioned in real-time, or written directly into a file on your hard disk. This entire process is referred to as sound rendering as analogous to the process of image rendering in the world of computer graphics.

Once rendered, you will listen to the resulting soundfile by opening it with your favorite sound editor and playing it either through the built-in digital-to-analog converter (DAC) on your motherboard or the DAC on your PC Sound Card.

Thus, in Csound, we basically work with two interdependent and complimentary text files, the orchestra file and the score file. These files can be given any name you would like. Typically, we give the two files the same name and differentiate between them by a unique three letter extension — .orc for the orchestra file and .sco for the score file. Naming is up to you. In this chapter I have called the files etude1.orc and etude1.sco, etude2.orc and etude2.sco, etude3.orc and etude3.sco, etc. These etude orchestras contain six instruments each (instr 101 — 106, instr 107 — 112, instr 113 — 118, etc.). From these multi-instrument orchestras I have also created a set of single instrument orchestras to make it easier for you to isolate and experiment on individual instruments. These are named after the instrument number itself (101.orc and 101.sco, 102.orc and 102.sco, 117.orc and 117.sco, etc.). Naming the corresponding score file the same as the orchestra file will help you keep your instrument library organized and I highly recommend you do the same. In fact, all the scores and orchestras in The Csound Book and on the accompanying CD-ROM follow this naming convention.

The Orchestra File

The Csound orchestra file consists of two parts: the header section and the instrument section.

The Header Section

In the header section you define the sample and control rates that the instruments will be rendered and you specify the number of channels in the output. The orchestral header that we will use throughout the text is:

sr        =     44100
kr        =     4410
ksmps     =     10
nchnls    =     1

Figure 1.1 Csound's default orchestral header.

The code in this header assigns the sample rate (sr) to 44.1 K (44100), the control rate (kr) to 4410 and ksmps to 10 (ksmps = sr/kr). The header also indicates that this orchestra should render a mono soundfile by setting the number of channels (nchnls) to 1. (If we wanted to render a stereo sound file, we would simply set nchnls to 2).

The Instrument Section

In Csound, instruments are defined (and thus designed) by interconnecting modules or opcodes that either generate or modify signals. These signals are represented by symbols, labels or variable names that can be patched from one opcode to another. Individual instruments are given a unique instrument number and are delimited by the instr and endin statements. A single orchestra file can contain virtually any number of instruments. In fact, in Csound everything is an instrument — your 8000 voice sampler, your 4000 voice FM synth, your 2000 voice multi-model waveguide synth, your 1000 band EQ, your 500 channel automated mixer, your 250 tap delay-line, Fractal-flanger, convolution-reverb, vetor-spatializer, whatever... To the Csound program each of these very different pieces of synthesis, signal processing and studio gear are merely instr 1, instr 2, instr 3, instr 4, etc.

The Orchestra Syntax

In the Csound orchestra file, the syntax of a generic opcode statement is:

Output    Opcode       Arguments        Comment  (optional)

In the case of the oscil opcode, this translates into the following syntax:

output oscil  amplitude,  frequency,  function #  ; COMMENT
a1     oscil  10000,      440,        1           ; OSCILLATOR

Sound Design Etude 1: A Six Instrument Orchestra

Csound Code — etude1.orc, etude1.sco

The Orchestra File

In our first orchestra file instr 101 uses a table-lookup oscillator opcode, oscil, to compute a 440 Hz sine tone with amplitude of 10000. A block diagram of instr 101 is show in figure 1.2 and the actual Csound orchestra code for this instrument is shown in figure 1.3.

Figure 1.2

Figure 1.2 Block diagram of instr 101, a simple fixed frequency and amplitude table-lookup oscillator instrument.

       instr     101              ; SIMPLE OSCIL
a1     oscil     10000, 440, 1
       out       a1

Figure 1.3 Orchestra code for instr 101, a fixed frequency and amplitude instrument using Csound's table-lookup oscillator opcode, oscil.

The block diagram of instr 101 clearly shows how the output of the oscillator, labeled a1, is patched to the input of the out opcode that writes the signal to the hard-disk.

Csound renders instruments line-by-line, from top to bottom. Input arguments are on the right of the opcode name. Outputs are on the left. Words that follow a semi-colon (;) are ignored. They are considered to be comments.

In instr 101, as show in figure 1.3, the input arguments to the oscillator are set at 10000 (amplitude), 440 (frequency) and 1 (for the function number of the waveshape template that the oscillator reads). The oscillator opcode renders the sound 44100 times a second with these settings and writes the result into the variable named a1. The sample values in the local-variable a1 can then be read as inputs by subsequent opcodes, such as the out opcode. In this way, variable names function like patch cords on a traditional analog synthesizer. And with these virtual patch cords one can route audio and control signals anywhere in an instruments using them to: set a parameter to a new value, dynamically control a parameter (like turning a knob), or as an audio input into some processing opcode.

In figure 1.4, you can see that instr 102 — instr 106 use the same simple instrument design as instr 101 (one signal generator writing to the hard-disk). We have replaced the oscil opcode with more powerful synthesis opcodes such as: foscil — a simple 2-oscillator FM synthesizer, buzz — an additive set of harmonically-related cosines, pluck — a simple waveguide synthesizer based on the Karplus-Strong algorithm, grain — an asynchronous granular synthesizer and loscil — a sample-based wavetable synthesizer with looping.

Block Diagram

      instr     102               ; SIMPLE FM
a1    foscil    10000, 440, 1, 2, 3, 1
      out       a1

Block Diagram

      instr     103               ; SIMPLE BUZZ
a1    buzz      10000, 440, 10, 1
      out       a1

Block Diagram

      instr     104               ; SIMPLE WAVEGUIDE
a1    pluck     10000, 440, 440, 2, 1
      out       a1

Block Diagram

      instr     105               ; SIMPLE GRANULAR
a1    grain     10000, 440, 55, 10000, 10, .05, 1, 3, 1
      out       a1

Block Diagram

      instr     106               ; SIMPLE WAVETABLE
a1    loscil    10000, 440, 4
      out       a1

Figure 1.4 Block diagrams and orchestra code for instr 102 — instr 106, a collection of fixed frequency and amplitude instruments that use different synthesis methods to produce a single note with the same amplitude (10000) and frequency (440).

Clearly the single signal-generator structure of these instruments is identical. But once you render them you will hear that their sounds are quite unique. Even though they each play with a frequency of 440 Hz and amplitude of 10000, the underlying synthesis algorithm embodied in each opcode is fundamentally different — requiring the specification of a unique set of parameters. In fact, these six signal generating opcodes (oscil, foscil, buzz, pluck, grain and loscil) represent the core synthesis technology behind many of today's most popular commercial synthesizers. One might say that in Csound, a single opcode is an entire synthesizer! Well... maybe not a very exciting or versatile synthesizer, but... in combination with other opcodes, Csound can, and will, take you far beyond any commercial implementation.

The Score File

Now let's look at the Csound score file that performs this orchestra of instruments. Like the orchestra file, the score file has two parts: tables and notes. In the first part, we use Csound's mathematical function-drawing subroutines (GENS) to directly generate function-tables (f-tables) and/or fill them by reading in soundfiles from the hard-disk. In the second part, we type in the note-statements. These note-events perform the instruments and pass them performance parameters such as frequency-settings, amplitude-levels, vibrato-rates and attack-times.

The GEN Routines

Csound's function generating subroutines are called GENS. Each of these (more than 20) subroutines is optimized to compute a specific class of functions or wavetables. For example, the GEN5 and GEN7 subroutines construct functions from segments of exponential curves or straight lines; the GEN9 and GEN10 subroutines generate composite waveforms made up of weighted sums of simple sinusoids; the GEN20 subroutine generates standard window functions such as the Hamming window and the Kaiser window that are typically used for spectrum analysis and grain envelopes; the GEN21 subroutine computes tables with different random distributions such as Gaussian, Cauchy and Poison; and the GEN1 subroutine will transfer data from a pre-recorded soundfile into a function-table for processing by one Csound's opcodes such as the looping-oscillator loscil.

Which function tables are required, and how the instruments in your orchestra use them, is totally up to you — the sound designer. Sometimes it's a matter of common sense. Other times it's simply a matter of preference or habit. For instance, since instr 106 used the sample-based looping oscillator, loscil, I needed to load a sample into the orchestra. I chose GEN1 to do it. Whereas in instr 102, since I was using the foscil opcode, I could have chosen to frequency modulate any two waveforms, but decided on the traditional approach and modulated two sinewaves as defined by GEN10.

The Score Syntax


In the score file, the syntax of the Csound function statement (f-statement) is:

f number  load-time  table-size  GEN  Routine  parameter1  parameter...  ; COMMENT

If we wanted to generate a 16 point sinewave, we might write the following f-statement:

f    111    0    16    10    1        ; A SINEWAVE

As a result, the f-table (f 111) would generate the function shown in figure 1.5.

Figure 1.5

Figure 1.5 A 16 point sine function defined by GEN10 with the arguments: f 111 0 16 10 1

As you can see, a sinewave drawn with 16 points of resolution is not particularly smooth. Most functions must be a power-of-2 in length. For synthesized wavetables, we typically specify function table sizes between 512 (5 K) and 8192 (8 K). In our first score, etude1.sco, we define the following functions using GEN10, GEN20 and GEN1:

f 1 0 4096 10 1
f 2 0 4096 10 1 .5 .333 .25 .2 .166 .142 .125 .111 .1 .09 .083 .076 .071 .066 .062
f 3 0 4097 20 2 1
f 4 0 0    1  "sing.aif" 0 4 0

Figure 1.6 Function tables defined in the score file etude1.sco.

All four functions are loaded at time 0. Both f 1 and f 2 use GEN10 to fill 4 K tables (4096 values) with: one cycle of a sinewave (f 1) and with the first 16 harmonics of a sawtooth wave (f 2). GEN20 is used to fill a 4 K table (f 3) with a Hanning window for use by the grain opcode. Finally, f 4 uses GEN1 to fill a table with a 44.1 K mono 16-bit AIFF format soundfile of a male vocalist singing the word la at the pitch A440 for 3 seconds. This sample is used by the loscil opcode. (Note that the length of f 4 is specified as 0. This tells the GEN1 subroutine to read the actual length of the file from the header of the soundfile sing.aif. In this specific case, then, that length would be 132300 samples — 44100 samples-per-second * 3 seconds.)

The Note List

In the second part of the Csound score file we write the notes. As in the orchestra file, each note-statement in the score file occupies a single line. Note-statements (or i-statements) call for an instrument to be made active at a specific time and for a specific duration. Further, each note-statement can be used to pass along a virtually unlimited number of unique parameter settings to the instrument and these parameters can be changed on a note-by-note basis.

Like the orchestra, which renders a sound line-by-line, the score file is read line-by-line, note-by-note. However, notes can have the same start-times and thus be performed simultaneously. In Csound one must always be aware of the fact that whenever two or more notes are performed simultaneously or whenever they overlap, their amplitudes are added. This can frequently result in samples-out-of-range or clipping. (We will discuss this in detail shortly.)

You may have noticed that in the orchestra, commas separated an opcode's arguments. Here in the score, any number of spaces or tabs separates both the f-table arguments and i-statement parameter fields, (or p-fields). Commas are not used.

In order to keep things organized and clear, sound designers often use tab-stops to separate their p-fields. This practice keeps p-fields aligned in straight columns and facilitates both reading and debugging. This is not required — just highly recommended!

The First Three P-Fields

In all note-statements, the meaning of the first three p-fields (or columns) is reserved. They specify the instrument number, the start-time and the duration.

;    P1              P2            P3

You — the sound designer, determine the function of all other p-fields. Typically, p4 is reserved for amplitude and p5 is reserved for frequency. This convention has been adopted in this chapter and in this text. In our first score, etude1.sco, a single note with duration of 3 seconds is played consecutively on instr 101instr 106. Because the start-times of each note are spaced 4 seconds apart, there will be a second of silence between each audio event.

; P1                 P2               P3
i 101                0                3
i 102                4                3
i 103                8                3
i 104                12               3
i 105                16               3
i 106                20               3

Figure 1.7 Simple score used to play instruments 101 through 106 as shown in figure 1.2 and 1.4.

Exercises for Etude 1

k/ar oscil  k/amp, k/cps, ifn[, iphs]
ar   foscil xamp, kcps, kcar, kmod, kndx, ifn[, iphs]
ar   buzz   xamp, xcps, knh, ifn[, iphs]
ar   pluck  kamp, kcps, icps, ifn, imeth[, iparm1, iparm2]
ar   grain  xamp, xpitch, xdens, kampoff, kpitchoff, kgdur, igfn, iwfn, imgdur [; igrnd]
ar   loscil xamp, kcps, ifn[, ibas[, imod1, ibeg1, iend1[, imod2, ibeg2, iend2]]]

Theory: Sound, Signals and Sampling

To better appreciate what's going on in Csound, it might be best to make sure we understand the acoustic properties of sound and how it is represented in a computer.

The experience of sound results from our eardrum's sympathetic response to the compressions and rarefactions of the air molecules projected outward in all directions from a vibrating source. This vibrating pattern of pressure variations is called a waveform. Looking at figure 1.8, we can see that the air molecules would be compressed when the waveform is above the x-axis (positive) and rarefacted when below (negative). Figure 1.8 shows a single cycle of a square wave in both the time and frequency domains.

Figure 1.8

Figure 1.8 A time domain (a) and frequency domain (b) representation of a square wave.

The time domain representation (a) plots time on the x-axis and amplitude on the y-axis a. The frequency domain representation (b) plots frequency on the x-axis and amplitude on the y-axis.

We experience sound in the time-domain as pressure variations, but we perceive sound in the frequency domain as spectral variations. The ear acts as a transducer, converting the mechanical motion of the eardrum (through the ossicles: the hammer, anvil and stirrup) to the oval window membrane that causes a traveling wave to propagate in the fluid of the cochlea and stimulate the hair cells on the basilar membrane. These hair cells are like a high resolution frequency analyzer that transmits this complex set of frequency information to the brain through nerves attached to each of the hair cells. With this incredibly sensitive set of sensors, transducers and transmitters we actively and continuously analyze, codify, classify and perceive the complex frequency characteristics of soundwaves as we resonate with the world around us.

Typically we employ a different transducer (a microphone) to convert acoustic waveforms into signals that we can visualize and manipulate in the computer. The process is referred to as sampling and is illustrated in figure 1.9.

When sampling a waveform, we use a microphone first to convert an acoustic pressure wave into an analogous electrical pressure wave or an analog signal. Then we pass this signal through an anti-aliasing lowpass filter to remove the frequency components above 1/2 the sampling-rate. In fact, a digital system can not accurately represent a signal above 1/2 the sampling rate (this frequency mirror is known as the Nyquist frequency). So then, after we lowpass filter out the highs, that we can't accurately represent, we proceed to measure or sample the amplitude of the signal with an analog-to-digital converter (ADC).


Figure 1.9

Figure 1.9 Digital recording (sampling) and playback.

If you have a 16 bit linear system, you would sample the analog waveform with 16 bits of precision (in a range from -32768 to 32767 or 216) taking a new measurement at the sample-rate (44100 times per second as defined by our default header). In essence we have quantized this continuous analog signal into a series of little snapshots (or steps) — literally we are taking thousands of little samples from the signal. You can clearly see the quantization of the sinewave in figure 1.5 where each address corresponds with the amplitude of the signal at that point in time.

To hear a sound from our computer, we convert the digital signal (this sequence of samples) back into an analog signal (a continuously varying voltage) using a digital-to-analog converter (DAC) followed by a smoothing lowpass filter. Clear? Well, enough of the basics for now. Let's get back to Csound.

Sound Design Etude 2: Parameter Fields in the Orchestra and Score

Csound Code — etude2.orc, etude2.sco

In our second orchestra, we modify instr 101 — 106 so that they can be updated and altered from the score file. Rather than setting each of the opcode's arguments to a fixed value in the orchestra, as we did in etude1.orc, we set them to p values that correspond to the p-fields (or column numbers) in the score. Thus each argument can be sent a completely different setting from each note-statement.

In instr 107, for example, p-fields are applied to each of the oscil arguments: amplitude (p4), frequency (p5) and wavetable (p6) as shown in figure 1.10.

Figure 1.10

Figure 1.10 Block diagram of instr 107, a simple oscillator instrument with p-field substitutions.

      instr     107             ; P-FIELD OSCIL
a1    oscil     p4, p5, p6
      out       a1

Figure 1.11 Orchestra code for instr 107, a simple oscillator instrument with p-field arguments.

Thus from the score file in figure 1.12, we are able to re-use the same instrument to play a sequence of three descending octaves followed by an A major arpeggio.

; P1     P2     P3     P4       P5       P6
i 107    0      1      10000    440      1
i 107    1.5    1      20000    220      2
i 107    3      3      10000    110      2
i 107    3.5    2.5    10000    138.6    2
i 107    4      2      5000     329.6    2
i 107    4.5    1.5    6000     440      2

Figure 1.12 Note-list for instr 107, that uses p-fields to perform 6 notes (some overlapping) with different frequencies, amplitudes and waveshapes.

In our next p-field example, shown in figures 1.13, 1.14 and 1.15, our rather limited instr 102 has been transformed into a more musically versatile instr 108an instrument capable of a large array of tone colors.

Figure 1.13

Figure 1.13 Block diagram of instr 108, a simple FM instrument with p-fields for each parameter.

      instr      108               ; P-FIELD FM
a1    foscil     p4, p5, p6, p7, p8, p9
      out        a1

Figure 1.14 Orchestra code for instr 108, a simple FM instrument with p-field substitutions.

; P1   P2    P3   P4     P5     P6  P7     P8     P9
i 108  7     1    10000  440    1   2      3      1
i 108  8.5   1    20000  220    1   .5     8      1
i 108  10    3    10000  110    1   1      13     1
i 108  10.5  2.5  10000  130.8  1   2.001  8      1
i 108  11    2    5000   329.6  1   3.003  5      1
i 108  11.5  1.5  6000   440    1   5.005  3      1

Figure 1.15 Note-list for instr 108 in which nine p-fields are used to play an FM synthesizer with different start-times, durations, amplitudes, frequencies, frequency-ratios, and modulation indices.

In the score excerpt shown in figure 1.15, each of the foscil arguments has been assigned to a unique p-field and can thus be altered on a note-by-note basis. In this case p4 = amplitude, p5 = frequency, p6 = carrier ratio, p7 = modulator ratio, p8 = modulation index and p9 = wavetable. Thus, starting 7 seconds into etude2.sco, instr 108 plays six consecutive notes. All six notes use f 1 (a sine wave in p9 ). The first two notes, for example, are an octave apart (p5 = 440 and 220) but have different c:m ratios (p7 = 2 and 13) and different modulation indexes (p8 = 3 and 8) resulting in two very different timbres. Obviously, p-fields in the orchestra allow us to get a wide variety of pitches and timbres from even the simplest of instruments.

Exercises for Etude 2

Amplitudes and Clipping

As stated previously, if you have a 16 bit converter in your computer system (which is typical), then you can express 216 possible raw amplitude values (i.e. 65536 in the range -32768 to +32767). This translates to an amplitude range of over 90 dB (typically you get about 6 dB of range per bit of resolution). But if you have been doing the exercises, then you have probably noticed that note amplitudes in Csound are additive. This means that if an instrument has an amplitude set to 20000 and you simultaneously play two notes on that instrument, you are asking your converter to produce a signal with an amplitude of ± 40000. The problem is that your 16 bit converter can only represent values up to about 32000 and therefore your Csound job will report that there are samples-out-of-range and the resulting soundfile will literally be clipped as show in figure 1.16.

Figure 1.16

Figure 1.16 Clipping as a result of adding two high-amplitude waveforms together.

Dealing with amplitudes is one of the most problematic aspects of working with Csound. There is no easy answer. The problem lies in the fact that Csound amplitudes are a simple mathematical representation of the signal. These measurements take no account of the acoustical or perceptual nature of the sound.

Simply put, two times the linear displacement of amplitude will not necessarily be perceived as two times as loud. A good book on Acoustics will help you appreciate the complexity of this problem. In the Csound world, do remember that whenever two or more notes are sounding, their amplitudes are added. If the numbers add up to anything greater than 32000 your signal will be clipped. Now Csound does have some opcodes and tools that will help you deal with this samples-out-of-range problem but none of the current opcodes or value converters truly solve it. Most of the time you will just have to set the levels lower and render the file again (and again and again) until you get the amplitudes into a range that your system can handle.

Data Rates

As you have seen in the first two etude orchestras, we can set and update parameters (arguments) with floating-point constants either directly in the orchestra or remotely through parameter-fields. But the real power of Csound is derived from the fact that one can update parameters with variables at any of the three update or data-rates: setup, i-rate, k-rate, or a-rate, where:

Both i-rate and k-rate variables are scalars. Essentially, they take on one value at a given time. The i-rate variables are primarily used for setting parameter values and note durations. They are evaluated at initialization-time and remain constant throughout the duration of the note-event.

The k-rate variables are primarily used for storing and updating envelopes and sub-audio control signals. These variables are recomputed and at the control-rate (4410 times per second) as defined by kr in the orchestra header. The a-rate variables are arrays or vectors of information. These variables are used to store and update data such as the output signals of oscillators and filters that change at the audio sampling-rate (44100 times per second) as defined by sr in the header.

One can determine and identify the rate that a variable will be updated by the first letter of the variable name. For example, the only difference between the two oscillators below is that one is computed at the audio-rate and the other at the control-rate. Both use the same opcode, oscil and both have the same arguments. What is different, then, is the sample resolution (precision) of the output signal.

ksig       oscil   10000,   1000,   1     ; 1000 HZ SINE - F 1
asig       oscil   10000,   1000,   1     ; 1000 HZ SINE - F 1

Figure 1.17 Two oscil opcodes with asig versus ksig outputs.

Given our default header settings of sr = 44100 and kr = 4410, ksig would be rendered at a sample-rate of 4 K and asig will be rendered at a sample-rate of 44.1K. In this case, the resulting output would sound quite similar because both would have enough sample resolution to accurately compute the 1000 HZ sinewave. However, if the arguments were different and the waveforms had additional harmonics, such as the sawtooth wave defined by f 2 in figure 1.18, the k-rate setting of 4410 samples-per-second would not accurately represent the waveform and aliasing would result. (We will cover this in more detail later.)

ksig       oscil   10000,   1000,   2     ; 1000 HZ SINE - F 2
asig       oscil   10000,   1000,   2     ; 1000 HZ SINE - F 2

Figure 1.18 An under-sampled sawtooth wave (given kr = 4410 and a frequency setting of 1000), resulting in an aliased ksig output.

You should note that it is left up to you, the sound designer, to decide the most appropriate, efficient and effective rate to render your opcodes. For example, you could render all of your low frequency oscillators (LFOs) and envelopes at the audio-rate, but it would take longer to compute the signals and the additional resolution would, in most cases, be imperceptible.

Variable Names

In our instrument designs so far we have been talking about and used a1, asig, k1 and ksig — in many cases interchangeably! What's with these different names for the same thing? Csound is difficult enough. Why not be consistent?

Well, when it comes to naming variables, Csound only requires that the variable names you use begin with the letter i, k, or a. This is so that the program can determine the rate to render that specific line of code. Anything goes after that.

For instance, you could name the output of the loscil opcode below a1, asig, asample, or acoolsound. Each variable name would be recognized by Csound and would run without error. In fact, given that the lines of code each have the same parameter settings, they would all sound exactly the same when rendered — no matter what name you gave them! Therefore, it is up to you, the sound designer, to decide on a variable naming scheme that is clear, consistent and informative... to you.

a1         loscil 10000, 440, 4  ; SAMPLE PLAYBACK OF F 4 AT A440
           out    a1
asig       loscil 10000, 440, 4  ; SAMPLE PLAYBACK OF F 4 AT A440
           out    asig
asample    loscil 10000, 440, 4  ; SAMPLE PLAYBACK OF F 4 AT A440
           out    asample
acoolsound loscil 10000, 440, 4  ; SAMPLE PLAYBACK OF F 4 AT A440
           out    acoolsound

Theory: Aliasing and the Sampling Theorem

Let's review a bit more theory before getting into our more advanced instrument designs. As we stated earlier, the under-sampled sawtooth (ksig) in figure 1.18 is an example of aliasing and a proof of the Sampling Theorem. Simply put, the Sampling Theorem states that, in the digital domain, to accurately reconstruct (plot, draw or reproduce) a waveshape at a given frequency, you need twice as many samples as the highest frequency you are trying to render. This hard upper limit at 1/2 the sampling rate is known as the Nyquist frequency. With an audio-rate of 44100 Hz, you can accurately render tones with frequencies (and partials) up to 22050 Hz — arguably far above the human range of hearing. And with a control-rate set to 4410 Hz, you can accurately render tones up to 2205 Hz. Certainly this would be an incredibly fast LFO and seems a bit high for slowly changing control signals, but you should recognize that certain segments of amplitude envelopes change extremely rapidly. High-resolution controllers can reduce the zipper-noise sometimes resulting from these rapid transitions.

Figure 1.19 illustrates graphically the phenomena known as aliasing. Here, because a frequency is under-sampled an alias or alternate frequency results. In this specific case our original sinewave is at 5 Hz. We are sampling this wave at 4 Hz (remember that the minimum for accurate reproduction would be 10 Hz — 2 time the highest frequency component) and what results is a 1 Hz tone! As you can see from the figure, the values that were returned from the sampling process trace the outline of a 1 Hz sinewave not a 5 Hz one. The actual aliased frequency is the difference between the sampling frequency and the frequency of the sample (or its partials too).

Figure 1.19

Figure 1.19 Aliasing. A 5 Hz sine (a) is under-sampled at 4 times a second (b) resulting in the incorrect reproduction of a of a 1 Hz sine (c).

To totally understand and experience this phenomena, it would be very informative to go back to the earlier instruments in this chapter and experiment with different rate variables. (I recommend that you duplicate and renumber all the instruments. Then change all the asig and a1 variables to ksig and k1 variables and render again. You'll be surprised, and even pleased, with some of the lo-fi results!) For now lets move on.

Sound Design Etude 3: Four Enveloping Techniques

Csound Code — etude3.orc, etude3.sco

It is often stated that a computer is capable of producing any sound imaginable. And mathematically, this is true. But if this is true, why is it that computerized and synthesized sounds are often so sterile, monotonous, and dull? To my ear, what makes a sound interesting and engaging is the subtle, dynamic and interdependent behavior of its three main parameters — pitch, timbre and loudness. And what makes Csound a truly powerful software synthesis language, is the fact that one can literally patch the output of any opcode into virtually any input argument of another opcode — thereby achieving an unsurpassed degree of dynamic parameter control. By subtly (or dramatically) modifying each of your opcode's input arguments, your synthetic, computerized sounds will spring to life!

Up to this point we have essentially gated our Csound instruments — simply turning them on at full volume. I'm not sure that any acoustic instrument works like that. Clearly, applying some form of overall envelope control to these instruments would go a long way toward making them more musical. And by adding other dynamic parameter controls we'll render sounds that are ever more enticing.

In instr 113, shown in figure 1.20 and 1.21, Csound's linen opcode is used to dynamically control the amplitude argument of the oscillator and thus functions as a typical attack-release (AR) envelope generator.

Figure 1.20

Figure 1.20 Block diagram of instr 113, an example one opcode's output controlling the input argument of another. In this case we are realizing dynamic amplitude control by modifying the amplitude argument of the oscil opcode with the output of another — the linen.

    instr   113             ; SIMPLE OSCIL WITH ENVELOPE
k1  linen   p4, p7, p3, p8     ; P3=DUR, P4=AMP, P7=ATTACK, P8=RELEASE
a1  oscil   k1, p5, p6         ; P5=FREQ, P6=WAVESHAPE
    out     a1

Figure 1.21 Orchestra code for instr 113, a simple oscillator instrument with amplitude envelope control.

In instr 115, shown in figures 1.22 and 1.23, a linen is again used to apply a dynamic amplitude envelope. But this time the enveloping is done by multiplying the output of the linen opcode (k1) with the output of the buzz opcode (a1). In fact, the multiplication is done in the input argument of the out opcode (k1 * a1). Here we not only see a different way of applying an envelope to a signal (multiplying it by a controller), but we also see that it is possible to perform mathematical operations on variables within an opcode's argument.

In figure 1.22, it can also be seen that an expon opcode is used in this instrument to move exponentially from the value in p10 to the value in p11 over the duration of the note (p3) and thereby sweeping the number of harmonic-cosines that buzz produces. The effect is very much like slowly closing a resonant lowpass filter and is another simple means of realizing dynamic timbre control.

Figure 1.22

Figure 1.22 Block Diagram of instr 115 showing amplitude control by multiplying two outputs and dynamic control of an argument.

     instr     115              ; SWEEPING BUZZ WITH ENVELOPE
k1   linen     p4, p7, p3, p8
k2   expon     p9, p3, p10
a1   buzz      1, p5, k2+1, p6
     out       k1*a1

Figure 1.23 Orchestra code for instr 115, an instrument with dynamic amplitude and harmonic control.

If you've been looking through the Csound Reference Manual you probably noticed that many opcodes, such as oscil, have both k-rate and a-rate versions. In instr 117, shown in figure 1.24, we use an audio-rate linen as an envelope generator. To do this, we patch the output of the grain opcode into the amplitude input of the linen, as can be seen in boldface in figure 1.25. Clearly this approach uses the linen to put an envelope on the signal coming from the granular synthesizer. In fact, we literally stuff the signal into an envelope before sending it out!

Figure 1.24

Figure 1.24 Block Diagram of instr 117 showing amplitude control by passing the signal (a1) through an a-rate envelope (a2).

      instr      117             ; GRAINS THROUGH AN ENVELOPE
k2    linseg     p5, p3/2, p9, p3/2, p5
k3    line       p10, p3, p11
k4    line       p12, p3, p13
k5    expon      p14, p3, p15
k6    expon      p16, p3, p17
a1    grain      p4, k2, k3, k4, k5, k6, 1, p6, 1
a2    linen      a1, p7, p3, p8
      out        a2

Figure 1.25 Orchestra code for instr 117, a granular synthesis instrument with dynamic control of many parameters. Note that the output of grain (a1) is patched into the amplitude argument of an a-rate linen to shape the sound with an overall amplitude envelope.


I have to admit that as a young student of electronic music, I was always confused by the use of the term envelope in audio and synthesis. I thought of envelopes as thin paper packages that you could enclose a letter to a friend or a check to the phone company and could never quite make the connection. But the algorithm used in instr 117 makes the metaphor clear to me and hopefully to you. Here we see that the linen opcode completely packages or folds the signal into this odd shaped AR container and then sends it to the output. Figure 1.26 is another way to visualize the process. First we see the raw bipolar audio signal. Then we see the unipolar attack-decay-sustain-release (ADSR) amplitude envelope. Next we see the envelope applied to the audio signal. In the final stage we see the bipolar audio signal whose amplitude has been proportionally modified by the contour of the ADSR.

Figure 1.26

Figure 1.26 Enveloping a signal.

Another way of looking at figure 1.26 would be that our bipolar signal is scaled (multiplied) by a unipolar ADSR (Attack-Decay-Sustain-Release) envelope that symmetrically contours the unipolar signal. The result is that the unipolar signal is enveloped in the ADSR package. Let's apply this new level of understanding in another instrument design.

In instr 118, shown in figure 1.27 and 1.28, we illustrate yet another way of applying an envelope to a signal in Csound. In this case, we are using an oscillator whose frequency argument is set to 1/p3. Let's plug in some numbers and figure out how this simple expression will help us compute the correct sub-audio frequency that will transform our periodic oscillator into an aperiodic envelope generator.

For example, if the duration of the note was 10 seconds and the frequency of our oscillator was set to 1/10 Hz it would take 10/10 Hz to completely read 1 cycle of the function table found in p7. Thus, setting the frequency of an oscillator to 1 divided by the note-duration, or 1/p3, guarantees that this periodic signal generator will compute only 1 period, or read only 1 complete cycle of its f-table during the course of each note event.

Figure 1.27

Figure 1.27 Block diagram of instr 118, an instrument with an oscillator for an envelope generator.

      instr      118              ; LOSCIL WITH OSCIL ENVELOPE
k1    oscil      p4, 1/p3, p7
k2    expseg     p5, p3/3, p8, p3/3, p9, p3/3, p5
a1    loscil     k1, k2, p6
      out a1

Figure 1.28 Orchestra code for instr 118, an sample-playback instrument with and oscillator-based envelope and dynamic pitch modulation.

In instr 118 the envelope functions called by p7 (f 6, f 7 and f 8) use GEN7 and GEN5 to draw a variety of unipolar linear and exponential contours. It is very important to note that it is illegal to use a value of 0 in any exponential function such as those computed by the GEN5 subroutine or by the expseg opcode. You will notice therefore, that f 8, that uses GEN5, begins and ends with a value of .001 rather than 0.

f 6 0 1024 7 0 10 1 1000 1 14 0                ; LINEAR AR ENVELOPE
f 7 0 1024 7 0 128 1 128 .6 512 .6 256 0       ; LINEAR ADSR ENVELOPE
f 8 0 1024 5 .001 256 1 192 .5 256 .5 64 .001  ; EXPONENTIAL ADSR

Figure 1.29 Linear and exponential envelope functions using GEN5 and GEN7.

The enveloping technique employed in instr 118 (using an oscillator as an envelope generator) has several advantages. First, you can create an entire library of preset envelope shapes and change them on a note-by-note basis. Second, since the envelope generator is in fact an oscillator, you can have the envelope loop or retrigger during the course of the note event to create interesting LFO-based amplitude-gating effects. In instr 119, shown in figure 1.30, p8 determines the number of repetitions that will occur during the course of the note. If p8 is set to 10 and p3 is 5 seconds, the instrument will retrigger the envelope 2 times per second. Whereas, if the duration of the note was 1 second (p3 = 1), then the envelope would be re-triggered 10 times per second.

    instr    119             ; RETRIGGERING FOSCIL WITH OSCIL ENVELOPE
k1  oscil    p4, 1/p3 * p8, p7  ; P8=RETRIGGER RATE PER NOTE DURATION
k2  line     p11, p3, p12
a1  foscil   k1, p5, p9, p10, k2, p6
    out      a1

Figure 1.30 Orchestra code for instr 119, an FM instrument with an oscillator envelope in which p8 determines the retriggering frequency.

Theory: Unipolar and Bipolar Functions

Typically we think of an oscillator as something that makes a sound by playing different waveshapes or samples. However, we have seen that Csound's table-lookup oscillator is capable of reading any unipolar or bipolar function at any rate. Clearly this signal generator can be utilized equally as a control source or an audio source. Unlike commercial synthesizers, in Csound the function of an opcode is defined by the use and by the user. So far, we have been using several of Csound's GEN routines to compute unipolar and bipolar functions and it is important that we make sure we understand the difference.

Most audio waveforms, such as those created with GEN10 are bipolar — having a symmetrical excursion above and below zero. On the other hand, most envelope functions, such as those we have created using GEN5 and GEN7, are unipolar — having an excursion in one direction only, typically positive. In Csound, by default, all bipolar functions are normalized in a range of -1 to +1 and all unipolar functions are normalized in a range from 0 to +1 as shown in figure 1.31.

Figure 1.31

Figure 1.31 A bipolar (-1 to +1) and a unipolar (0 to +1) function.

If you wish to bypass Csound's default normalization process, you must use a minus sign ( - ) before the GEN number as shown in f 3 and f 4 in figure 1.32.

f 1 0  512 10   1                   ; NORMALIZED BIPOLAR SINE
f 2 0  512 7    0 6 1 500 1 6 0     ; NORMALIZED UNIPOLAR ENVELOPE
f 3 0  512 -10  .3 .013 .147 .026   ; NON-NORMALIZED BIPOLAR SUM-OF-SINES
f 4 0  512 -7   440 256 220 256 440 ; NON-NORMALIZED UNIPOLAR ENVELOPE

Figure 1.32 Two Normalized functions (f 1 and f 2) and two non-normalizing functions (f 3 and f 4).

Exercises for Etude 3

k/ar linen   k/xamp, irise, idur, idec
k/ar line    ia, idur1, ib
k/ar expon   ia, idur1, ib
k/ar linseg  ia, idur1, ib[, idur2, ic[...]]
k/ar expseg  ia, idur1, ib[, idur2, ic[...]]

Sound Design Etude 4: Mixing, Chorusing, Tremolo and Vibrato

Csound Code — etude4.orc, etude4.sco

Next we improve the quality of our instruments by first mixing and detuning our oscillators to create a fat chorused effect. Then we crossfade opcodes to create a hybrid synthesis algorithm unlike anything offered commercially. Finally we animate our instruments by introducing sub-audio and audio rate amplitude and frequency modulation (AM and FM). We also employ several of Csound's display opcodes to visualize these more complex temporal and spectral envelopes. And we'll learn a little more about the language as we go.

Self-Commenting Instrument Design

In instr 120, shown in figures 1.33 and 1.34, we mix together three detuned oscillators that all use the same envlpx opcode for an amplitude envelope. Utilizing the display opcode, this envelope is plotted on the screen with a resolution set to trace the envelope shape over the entire duration of the note (p3) and thus display the complete contour.

Figure 1.33

Figure 1.33 Block diagram of instr 120 illustrating three chorusing oscillators with a common envelope and display.

         instr    120         ; SIMPLE CHORUSING
idur     =        p3                    ; INITIALIZATION BLOCK
iamp     =        ampdb(p4)
ifrq     =        cpspch(p5)
ifun     =        p6
iatk     =        p7
irel     =        p8
iatkfun  =        p9
kenv     envlpx   iamp, iatk, idur, irel, iatkfun, .7, .01
asig3    oscil    kenv, ifrq*.99, ifun  ; SYNTHESIS BLOCK
asig2    oscil    kenv, ifrq*1.01, ifun
asig1    oscil    kenv, ifrq, ifun
amix     =        asig1+asig2+asig3     ; MIX
         out      amix
         display  kenv, idur

Figure 1.34 Orchestra code for instr 120, a chorusing instrument in which p-fields are given i-time variable names. Also an envlpx, that is displayed, is used as a common envelope.

Although instr 120 is still rather simple in design, it does serve as a model of the way that more complex instruments are typically laid-out and organized in Csound. In figure 1.34 you can see that variables are initialized at the top of the instrument and given names that help us to identify their function (resulting in a self-commenting coding style). Clearly you can read that the attack time is assigned to iatk from the score value given in p7 (iatk = p7) and that the release time is assigned to irel from the score value given in p9 (irel = p9). And most importantly, by looking at where they are patched in the envlpx opcode you can see and remember what arguments correspond with those particular parameters thereby making the opcode itself easier to read.

You should note that in Csound the equals sign ( =) is the assignment operator. It is in fact an opcode! Assigning plain-English mnemonics and abbreviated names to variables at i-time makes an instrument much easier to read and is highly recommended.

Spectral Fusion

Next we will look at instr 122, as shown in figures 1.35 and 1.36. This instrument uses independent expon opcodes to crossfade between a foscil and a buzz opcode that are both fused (morphed/mixed/transfigured) with a pluck attack creating a beautiful hybrid timbre. This instrument employs Csound's dispfft opcode to compute and display a 512 point Fast Fourier Transform (FFT) of the composite signal updated every 250 milliseconds. Although the display and dispfft opcodes are a wonderful way to literally look into the behavior of your instrument. It is important to note that when you are using your instruments to make music, you should always remember to comment out these display and print opcodes because they significantly impact the performance of your system. These are informative and educational but really function as debugging tools. You should think of them as such.

Figure 1.35

Figure 1.35 Block diagram of instr 122 illustrating the FFT display of 3 mixed (fused) and crossfaded (morphed) opcodes.

           instr      122          ; SIMPLE SPECTRAL FUSION
idur       =          p3
iamp       =          ampdb(p4)
ifrq       =          cpspch(p5)
ifun       =          p6
iatk       =          p7
irel       =          p8
iatkfun    =          p9
index1     =          p10
index2     =          p11
kenv       envlpx     iamp, iatk, idur, irel, iatkfun, .7, .01
kmodswp    expon      index1, idur, index2
kbuzswp    expon      20, idur, 1
asig3      foscil     kenv, ifrq, 1, 1, kmodswp, ifun
asig2      buzz       kenv, ifrq*.99, kbuzswp+1, ifun
asig1      pluck      iamp, ifrq*.5, ifrq, 0, 1
amix       =          asig1+asig2+asig3
           out        amix
           dispfft    amix, .25, 1024

Figure 1.36 Orchestra code of instr 122, an instrument that demonstrates the fusion of three synthesis techniques — pluck, foscil, and buzz.

Rather than simply mixing or crossfading opcodes as we have done in instr 120 and instr 122, another popular approach is to modulate one audio opcode with the frequency and amplitude of another. In instr 124, as shown in figures 1.37 and 1.38 for example, an a-rate oscil (asig) is amplitude modulated with the output of a dynamically swept a-rate oscil (alfo) whose frequency is dynamically altered with a line opcode and whose amplitude is controlled by an expon.

Figure 1.37

Figure 1.37 Block diagram of instr 124 a dynamic amplitude modulation instrument.

           instr      124      ; SWEEPING AMPLITUDE MODULATION
idur       =          p3
iamp       =          ampdb(p4)
ifrq       =          cpspch(p5)
ifun       =          p6
iatk       =          p7
irel       =          p8
iatkfun    =          p9
imodp1     =          p10
imodp2     =          p11
imodfr1    =          p12
imodfr2    =          p13
imodfun    =          p14
kenv       envlpx     iamp, iatk, idur, irel, iatkfun, .7, .01
kmodpth    expon      imodp1, idur, imodp2
kmodfrq    line       cpspch(imodfr1), idur, cpspch(imodfr2)
alfo       oscil      kmodpth, kmodfrq, imodfun
asig       oscil      alfo, ifrq, ifun
           out        asig*kenv

Figure 1.38 Orchestra code for instr 124, an amplitude modulation instrument with independent amplitude envelope and variable LFO.

This simple oscillator combination can produce a wide range of rich harmonic and inharmonic dynamically evolving timbres.

Next in instr 126, shown in figures 1.39 and 1.40, we present a simple vibrato instrument that uses a linseg opcode to delay the onset of the modulation resulting in a more natural vibrato effect.

Figure 1.39

Figure 1.39 Block diagram of instr 126, an additive instrument with delayed vibrato.

           instr    126           ; SIMPLE DELAYED VIBRATO
idur       =         p3
iamp       =         ampdb(p4)
ifrq       =         cpspch(p5)
iatk       =         p6
irel       =         p7
ivibdel    =         p8
imoddpt    =         p9
imodfrq    =         p10
iharm      =         p11
kenv       linen     iamp, iatk, idur, irel
kvibenv    linseg    0, ivibdel, 1, idur-ivibdel, .3
klfo       oscil     kvibenv*imoddpt, imodfrq, 1
asig       buzz      kenv, ifrq+klfo, iharm, 1
           out       asig

Figure 1.40 Orchestra code for instr 126, a buzz instrument with delayed vibrato.

Even these relatively simple designs can lend themselves to an incredibly diverse and rich palate of colors. Take time to explore and modify them.

Value Converters

In the initialization block of instr 120, shown in figure 1.34 (and in all the instruments in this etude for that matter), you might have noticed that two of Csound's value converters ampdb and cpspch were utilized (iamp = ampdb(p4) and ifrq = cpspch(p5)). These allow us to express frequency and amplitude data in a more familiar and intuitive format than having to use straight Hz and linear amplitudes we have used thus far.

The cpspch value converter will read a number in octave-point- pitch-class notation and convert it to Hz (e.g., 8.09 = A4 = 440 Hz). Octave-point-pitch-class is a notation shorthand system in which octaves are represented as whole numbers (8.00 = Middle C or C4, 9.00 = C5, 10.00 = C6, etc.) and the 12 equal-tempered pitch classes are numbered as the two decimal digits that follow the octave (8.01 = C#4, 8.02 = D4, 8.03 = D#4, etc.). The scale shown in figure 1.41 should make the system extremely clear to you. And by adding more decimal places, it is also possible to specify microtones as shown in figure 1.42.

NOTE #        Hertz (Hz)        CPSPCH        MIDI NOTE NUMBER

C4            261.626           8.00          60
C#4           277.183           8.01          61
D4            293.665           8.02          62
D#4           311.127           8.03          63
E4            329.628           8.04          64
F4            349.228           8.05          65
F#4           369.994           8.06          66
G4            391.955           8.07          67
G#4           415.305           8.08          68
A4            440.000           8.09          69
A#4           466.164           8.10          70
B4            493.883           8.11          71
C5            523.251           9.00          72

Figure 1.41 A chromatic scale beginning at middle C specified by using Csound's cpspch value converter.

As you can see, cpspch converts from the pch (octave point pitch-class) representation to a cps (cycles-per-second) representation. If you are writing tonal or microtonal music with Csound, you might find this value converter particularly useful.

C4          8.00
C4+         8.005
C#4         8.01
C#4+        8.015
D4          8.02
D4+         8.025
D#4         8.03
D#4+        8.035
E4          8.04
E4+         8.045
F4          8.05
F4+         8.055
F#4         8.06
F#4+        8.065
G4          8.07
G4+         8.075
G#4         8.08
G#4+        8.085
A4          8.09
A4+         8.095
A#4         8.10
A#4+        8.105
B4          8.11
B4+         8.115
C5          9.00

Figure 1.42 An octave of equal-tempered quarter-tones specified using the cpspch value converter.

Similarly, the ampdb value converter will read a decibel value and convert it to a raw amplitude value as shown in figure 1.43.

ampdb(42)    =    125.9
ampdb(48)    =    251.2
ampdb(54)    =    501.2
ampdb(60)    =    1000
ampdb(66)    =    1995.3
ampdb(72)    =    3981.1
ampdb(78)    =    7943.2
ampdb(84)    =    15848.9
ampdb(90)    =    31622.8
ampdb(96)    =    63095.7 ; WARNING: SAMPLES OUT OF RANGE!!!

Figure 1.43 Amplitude conversion using the ampdb value converter.

You should note that although the logarithmic dB or decibel scale is linear in perception, Csound doesn't really use dB. The ampdb converter is a direct conversion with no scaling. Regrettably, you will still have to spend a great deal of time adjusting, normalizing, and scaling your amplitude levels even if you are using Csound's ampdb converter because the conversion is done prior to the rendering.

Exercises for Etude 4

k/ar envlpx   k/xamp,irise,idur,idec,ifn,iatss,iatdec[, ixmod]
     print    iarg[, iarg, ...]
     display  xsig, iprd[, inprds][, iwtflg]
     dispfft  xsig, iprd, iwsiz[, iwtyp][, idbouti][, iwtflg]

Theory: Filter Basics

The next sound design etude is an introductory exploration of a number of Csound's filter opcodes. But before we get too far along it might help if we review some of our filter basics. Four of the most common filter types are: lowpass, highpass, bandpass and bandreject as illustrated in figure 1.44. In this figure, a signal consisting of 12 harmonic partials of equal strength (a) is first filtered by a one-pole lowpass (b), a one-pole highpass (c), a two-pole bandpass (d), and a two-pole bandreject filter (e). The dotted spikes are in the filter's stop band and the solid spikes are in the pass band. The cutoff frequency is the -3 dB point in each of the spectral envelope curves outlined by the solid line.

Figure 1.44

Figure 1.44 A source signal (a) modified by the four basic filters: tonea one-pole lowpass (b), atone — a one-pole highpass (c), reson — a two-pole bandpass (d) and areson — a two-pole bandreject (e).

In Csound these filters would correspond with the tone (b), atone (c), reson (d) and areson (e) opcodes. Notice that the dashed line at -3 dB indicates the cutoff frequency of the filter. Why -3 dB? Well, since the slope of a filter is in fact continuous, the cutoff frequency (fc) of a filter is somewhere on the curve. and has been defined as the point in this frequency continuum at which the pass band is attenuated by -3 dB.

Sound Design Etude 5: Noise, Filters, Delay Lines, and Flangers

Csound Code — etude5.orc, etude5.sco

The next set of instruments employ a number of Csound signal modifiers in various parallel and serial configurations to shape and transform noise and wavetables. In instr 128, shown in figures 1.45 and 1.46, we dynamically filters white noise produced by Csound's rand opcode. Separate expon and line opcodes are used to independently modify the cutoff frequency and bandwidth of Csound's two-pole reson (bandpass) filter. Also, an expseg amplitude envelope is used and displayed.

Figure 1.45

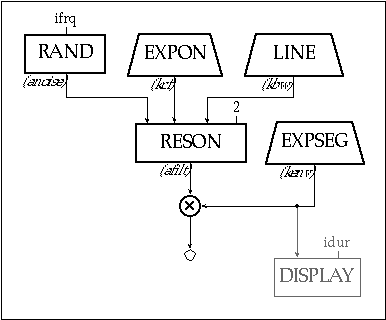

Figure 1.45 Block Diagram of instr 128, a bandpass-filtered noise instrument.

       instr   128            ; BANDPASS-FILTERED NOISE
idur   =       p3
iamp   =       p4
ifrq   =       p5
iatk   =       p6
irel   =       p7
icf1   =       p8
icf2   =       p9
ibw1   =       p10
ibw2   =       p11
kenv   expseg  .01, iatk, iamp, idur/6, iamp*.4, idur(iatk+irel+idur/6),
               iamp*.6, irel, .01
anoise rand    ifrq
kcf    expon   icf1, idur, icf2
kbw    line    ibw1, idur, ibw2
afilt  reson   anoise, kcf, kbw, 2
       out     afilt*kenv
       display kenv, idur

Figure 1.46 Orchestra code for instr 128, a bandpass filtered noise instrument with variable cutoff frequency and bandwidth.

A Cascade Filter Network

In instr 129 through 132, shown in figure 1.47, a white noise source (rand) is passed through a series of one-pole lowpass filters (tone). The significant contribution made by each additional pole should be quite apparent from this set of examples. In fact, each pole increases the slope or steepness of a filter by 6 dB per octave of roll-off at the cutoff frequency. A cascade filter design such as this makes the slope proportionally steeper with each added tone thus resulting in a more effective filter. Thus in our cascade design, instr 129 would have a slope corresponding to an attenuation of 6 dB per octave; instr 130 would have a slope of 12 dB per octave; instr 131 would have a slope of 18 dB per octave; and instr 132 would have a slope of 24 dB per octave. The dispfft opcode should clearly show the progressive effect on the spectrum of the noise in each instrument.

           instr       129          ; ONE-POLE LOWPASS
anoise     rand        ifrq
afilt      tone        anoise, kcut
           dispfft     afilt, idur, 4096
           instr       130          ; TWO-POLE LOWPASS
anoise     rand        ifrq
afilt2     tone        anoise, kcut
afilt1     tone        afilt2, kcut
           dispfft     afilt1, idur, 4096
           instr       131          ; THREE-POLE LOWPASS
anoise     rand        ifrq
afilt3     tone        anoise, kcut
afilt2     tone        afilt3, kcut
afilt1     tone        afilt2, kcut
           dispfft     afilt1, idur, 4096
           instr       132          ; FOUR-POLE LOWPASS
anoise     rand        ifrq
afilt4     tone        anoise, kcut
afilt3     tone        afilt4, kcut
afilt2     tone        afilt3, kcut
afilt1     tone        afilt2, kcut
           dispfft     afilt1, idur, 4096

Figure 1.47 Orchestra code excerpts from instr 129 — 132, taht pass white noise through a cascade of one-pole lowpass filters.


For several examples now, we have been using Csound's display and dispfft opcodes to look at signals. But what exactly is being displayed? And how are these opcodes different?

As you know, signals can be represented in either the time or the frequency domain. In fact, these are complimentary representations illustrating of how the signal varies in either amplitude or frequency over time. Csound's display opcode plots signals in the time domain as an amplitude versus time graph whereas the dispfft opcode plots signals in the frequency domain using the Fast Fourier Transform method. Both allow us to specify how often to update the display and thereby provide the means of watching a time or frequency domain signal evolve over the course of a note. Thus we used display in instr 128 to look at the shape of the expseg amplitude envelope and see the way that the amplitude varied over the entire duration of the note.

In instr 129 — 132 we used the dispfft opcode to look at the way that the frequencies were attenuated by our filter network. In our design, by specifying that the FFT be 4096 we divided the frequency space into 2048 linearly spaced frequency bins of about 21.5 Hz a piece (44100/2048 = 21.533), but we could have divided the spectrum anywhere from 8 bands (each 5512 Hz wide) to 2048 bands (each 21.5 Hz wide). We will continue using these opcodes to look into the time domain and frequency domain characteristics of the sounds that our instruments produce. In particular, the dispfft opcode will help and better understand the effect that Csound's different filters are having on the signals we put into them.

The tone and reson filters we have used thus far were some of Csound's first. They are noted for their efficiency (they run fast) and equally noted for their instability (they blow-up). In fact it has always been good advice to patch the output of these filters into Csound's balance opcode in order to keep the samples-out-of-range under control.

Over the years, however, many new filters have been added to the Csound language. In the early days of analog synthesis, it was the filters that defined the sound of these rare and coveted classic instruments. Today in Csound the Butterworth family of filters (butterlp, butterhp, butterbp and butterbr) are great sounding and becoming more common in virtually all instrument designs. This is due in part to the fact that the Butterworth filters have: more poles (they're steeper and more effective at filtering, a flatter frequency response in the pass-band (they are smoother and cleaner sounding) and they are significantly more stable (meaning that you do not have to worry so much about samples-out-of-range). In instr 133, shown in figures 1.48 and 1.49 we use a parallel configuration comprised of a 4-pole butterbp and a 4-pole butterlp filter pair as a way to model the classic resonant-lowpass filter commonly found in first generation analog synthesizers.

Figure 1.48

Figure 1.48 Block diagram of instr 133, a parallel butterbp and butterlp configuration resulting in a classic resonant-lowpass design.

         instr      133          ; LOWPASS WITH RESONANCE
idur     =          p3
iamp     =          ampdb(p4)
ifrq     =          p5
icut1    =          p6
icut2    =          p7
iresgn   =          p8
kcut     expon      icut1, idur, icut2
aplk     pluck      iamp, ifrq, ifrq, 0, 1
abpf     butterbp   aplk, kcut, kcut*.2
alpf     butterlp   aplk, kcut
amix     =          alpf+(abpf*iresgn)
         out        amix
         dispfft    amix, idur, 1024

Figure 1.49 Orchestra code for instr 133, a classic resonant-lowpass filter design.

As you can see and hear from the previous set of examples, dynamic parametric control of Csound's filter opcodes, combined in various parallel and serial configurations, opens the door to a wide world of subtractive sound design possibilities.

An Echo-Resonator

Let's shift our focus now to another set of Csound's signal modifiers — comb and vdelay.

A comb filter is essentially a delay line with feedback as illustrated in figure 1.50. As you can see, the signal enters the delay line and is output delayed by the length of the line (25 milliseconds in this case). When it reaches the output, it is fed back to the input after being multiplied by a gain factor.

Figure 1.50

Figure 1.50 Flowchart of a comb filter and its impulse response.

The time it takes for the signal to circulate back to the input is called the loop-time. As demonstrated in instr 135, shown in figures 1.51, 1.52 and 1.53, a diskin opcode is used to play (both forward and reverse) and transpose samples directly from disk into a comb filter. When the loop-time is long, we will perceive discrete echoes, but when the loop-time is short, the comb filter will function more like a resonator. As shown in figure 1.50, the impulse response of a comb filter is a train of impulses spaced equally in time at the interval of the loop-time. In fact, the resonant frequency of this filter is 1/loop-time. In instr 135 this is specified in milliseconds. In the score comments, you will see where I have converted the period of the loop, specified in milliseconds, into the frequency of the resonator, specified in Hz.

Figure 1.51

Figure 1.51 Block diagram of instr 135, a soundfile delay/resonator instrument using a diskin to read directly from disk without the use of an f-table and a comb to delay or resonate.

          instr      135         ; DISKIN ECHO-RESONATOR
idur      =          p3
iamp      =          p4
irvt      =          p5
iloopt    =          p6
kenv      linen      iamp, .01, idur, .01
ain       diskin     hellorcb.aif, 1
acomb     comb       ain*kenv, irvt, iloopt, 0
          out        ain+acomb

Figure 1.52 Orchestra code for instr 135, an echo-resonator instrument using the comb opcode.

i 135  0   5    .4   10    .5        ; 1/.5       =    2 Hz
i 135  5   5    .3   5     .25       ; 1/.25      =    4 Hz
i 135  10  5    .3   5     .125      ; 1/.125     =    8 Hz
i 135  15  5    .2   2     .0625     ; 1/.0625    =    16 Hz
i 135  20  5    .2   2     .03125    ; 1/.03125   =    32 Hz
i 135  25  5    .2   2     .015625   ; 1/.015625  =    64 Hz
i 135  30  5    .04  2     .001      ; 1/.001     =   1000 Hz

Figure 1.53 Score code for instr 135, the looptime (p6) sets the period and resonant frequency of this recirculating delay line.

Although we can vary the loop time in instr 135 on a note-by-note basis, by design, the comb opcode will not allow you to dynamically vary this parameter during the course of a note event, but the vdelay opcode will! And variable delay lines are the key to designing one of the more popular synthesizer effects processors — a flanger.

In instr 136, as shown in figures 1.54 and 1.55, noise cascades through a series of variable delay lines to make a flanger. By patching the output from one vdelay opcode into the input of another, the strength and focus of the characteristic resonance is emphasized (just as in our tone example above). Furthermore, this resonant peak is swept across the frequency spectrum under the control of a variable rate LFO whose frequency is dynamically modified by the line opcode.

Figure 1.54

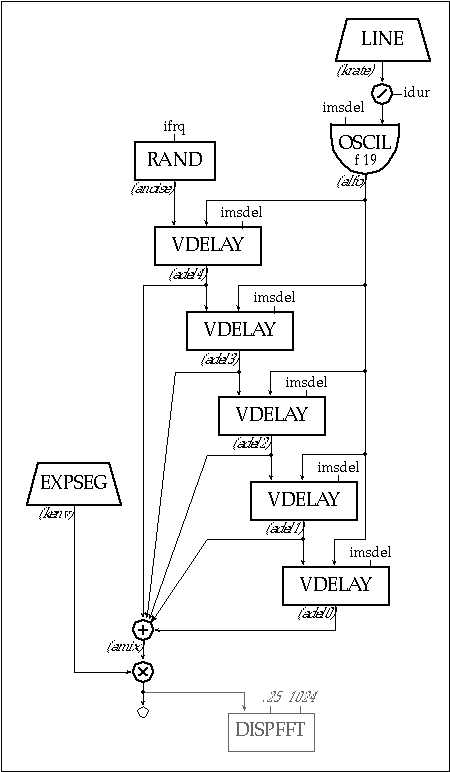

Figure 1.54 Block diagram of instr 136, a vdelay flanger.

        instr   136         ; VDELAY FLANGER
idur    =       p3
iamp    =       p4
ifrq    =       p5
iatk    =       p6
irel    =       p7
irat1   =       p8
irat2   =       p9
imsdel  =       p10
kenv    expseg  .001, iatk, iamp, idur/8, iamp*.3, idur-(iatk+irel+idur/8),
                iamp*.7, irel, .01
krate   line    irat1, idur, irat2
alfo    oscil   imsdel, krate/idur, 19
anoise  rand    ifrq
adel4   vdelay  anoise, alfo, imsdel
adel3   vdelay  adel4, alfo, imsdel
adel2   vdelay  adel3, alfo, imsdel
adel1   vdelay  adel2, alfo, imsdel
adel0   vdelay  adel1, alfo, imsdel
amix    =       adel0+adel1+adel2+adel3+adel4
        out     kenv*amix
        dispfft amix, idur, 1024

Figure 1.55 Orchestra code for instr 136, a variable delay line flanger instrument.

Score Statements and Note-List Shortcuts

Admittedly, creating and editing text-based note-lists is not fun. Granted, the note-list does offer you the most exacting and direct control over the behavior of your instruments, but it is still one of the most unmusical and tedious aspects of working with Csound.

As stated at the very beginning of this chapter, Csound does read MIDI files and this may prove a more intuitive way of generating notes and playing your Csound instruments. However, Csound instruments must be designed specifically to work with MIDI and you will need to adapt your traditional Csound instruments before they will work with MIDI devices.

Although not covered in the text of The Csound Book, there are a number of chapters on the CD-ROM dedicated to controlling Csound from MIDI keyboards and MIDI files. In fact, I have written a compliment to this chapter entitled An Introduction to MIDI-based Instrument Design in Csound for the CD-ROM and I hope it helps you to develop some really great MIDI instruments.

Still, without resorting to MIDI, Csound does feature a collection of Score Statements and Score Symbols (text-based shortcuts) that were created to simplify the process of creating and editing note-lists. Like f-statements, these score commands begin with a specific letter and are sometimes followed by a set of arguments. I employ many of them in etude5.sco.

The first score statement that I employ in etude5.sco is the Advance Statementa, shown in figure 1.56. The advance statement allows the beat-count of a score to be advanced without generating any sound samples. Here it is used to skip over the first two notes of the score and begin rendering 10 seconds into the piece. The advance statement can be particularly useful when you are working on a long and complex composition and you are interested in fine-tuning something about a sound in the middle or at the very end of the piece. Rather than waiting for the entire work to render just to hear the last note, you can advance to the end and only render that section — saving yourself hours and hours. The syntax of the advance statement is shown in the comments in figure 1.56.

a           0            0               10
; INS  ST  DUR  AMP  FRQ    ATK  REL  CF1   CF2    BW1  BW2
i 128  1   5    .5   20000  .5   2    8000  200    800  30
i 128  6   5    .5   20000  .25  1    200   12000  10   200
i 128  10  5    .5   20000  .5   2    8000  200    800  30
i 128  14  5    .5   20000  .25  1    200   12000  10   200
i 128  18  3    .5   20000  .15  .1   800   300    300  40

Figure 1.56 Score excerpt from etude5.sco featuring the advance statement.

The second score statement that I employ in etude5.sco is the Section Statements, shown in figure 1.57. The section statement has no arguments. It merely divides a score into sections and allow you to begin counting again from time 0. This is particularly useful if you want to repeat a passage. To do so, you would simply insert an s at the end of the first section,copy the section, and paste it after the s. Figure 1.57, again from etude5.sco, shows exactly this use.

; INS    ST    DUR    AMP   FRQ     ATK    REL    CUT1   CUT2
i 129    0     1.5    3     20000   .1     .1     500    500
i 130    2     1.5    3     20000   .1     .1     500    500
i 131    4     1.5    3     20000   .1     .1     500    500
i 132    6     1.5    3     20000   .1     .1     500    500
i 129    8     1.2    1     20000   .01    .01    5000   40
i 130    11    1.2    1     20000   .01    .01    5000   40
i 131    12    1.2    1     20000   .01    .01    5000   40
i 132    13    1.2    1     20000   .01    .01    5000   40
; INS    ST    DUR    AMP   FRQ     ATK    REL    CUT1   CUT2
i 129    0     1.5    3     20000   .1     .1     500    500
i 130    2     1.5    3     20000   .1     .1     500    500
i 131    4     1.5    3     20000   .1     .1     500    500
i 132    6     1.5    3     20000   .1     .1     500    500
i 129    8     1.2    1     20000   .01    .01    5000   40
i 130    11    1.2    1     20000   .01    .01    5000   40
i 131    12    1.2    1     20000   .01    .01    5000   40
i 132    13    1.2    1     20000   .01    .01    5000   40

Figure 1.57 Cut-and-paste repeated score excerpt from etude5.sco featuring the section statement.

The third score statement that I employ in etude5.sco is the Dummy f-statementf 0, shown in figure 1.58. In Csound you can use the score to load f-tables into memory at any time. This would allow you to replace one waveshape or sample with another during the course of a piece and yet refer to them with the same table number in the orchestra. Likewise, you can also load in a dummy f-table (f 0) at any time in a score as a means of extending the length of a particular score section or inserting silence between sections. As illustrated in figure 1.58, I am using an f 0 statement to insert two seconds of silence between two score sections.

; INS   ST   DUR   AMP   FRQ     ATK   REL   CUT1   CUT2
i 129   0    1.5   3     20000   .1    .1    500    500
i 130   2    1.5   3     20000   .1    .1    500    500
i 131   4    1.5   3     20000   .1    .1    500    500
i 132   6    1.5   3     20000   .1    .1    500    500
i 129   8    1.2   1     20000   .01   .01   5000   40
i 130   11   1.2   1     20000   .01   .01   5000   40
i 131   12   1.2   1     20000   .01   .01   5000   40
i 132   13   1.2   1     20000   .01   .01   5000   40
; INS   ST   DUR   AMP   FRQ     ATK   REL   CF1    CF2     BW1   BW2
i 128   0    5     .5    20000   .5    2     8000   200     800   30
i 128   4    5     .5    20000   .25   1     200    12000   10    200
i 128   8    3     .5    20000   .15   .1    800    300     300   40
i 128   10   11    .5    20000   1     1     40     90      10    40

Figure 1.58 A score excerpt from etude5.sco featuring the dummy f0 statement used to insert 2 seconds of silence between two score sections.

The fourth set of score shortcuts that I employ in etude5.sco are the Carry, Ramp and + Symbols, as shown in figure 1.59. The carry symbol ( . ) copies a p-field value from one note-statement to the next. The ramp symbol ( < ) linearly interpolates between two p-field values over any number of notes (The number of notes determines the number of points in the interpolation). The + symbol only works for p2. There it automatically calculates the start time of the current note by adding together the start-time and duration of the previous note (p2 + p3). Thus the current note will literally be consecutive with the previous one. All three symbols are used in figure 1.59 and the shorthand is translated in figure 1.60.

i 134   0    .1    90      8.09    8000   80    1
i .     +    .     <       8.095   <      <     <
i .     .    .     .       8.10    .      .     .
i .     .    .     .       8.105   .      .     .
i .     .    .     .       8.11    .      .     .
i .     .    .     .       8.115   .      .     .
i .     .    .     .       9.00    .      .     .
i .     .    .     .       9.005   .      .     .
i .     .    .     .       9.01    .      .     .
i .     .    .     .       9.015   .      .     .
i .     .    .     80      9.02    9000   60    50

Figure 1.59 A score excerpt from etude5.sco featuring the carry ( . ), p2 increment ( + ), ramp ( < )symbols.

i 134   0    .1    90      8.09    8000   80    1
i 134   .1   .1    89      8.095   8100   78    5
i 134   .2   .1    88      8.10    8200   76    10
i 134   .3   .1    87      8.105   8300   74    15
i 134   .5   .1    86      8.11    8400   72    20
i 134   .5   .1    85      8.115   8500   70    25
i 134   .6   .1    84      9.00    8600   68    30
i 134   .7   .1    83      9.005   8700   66    35
i 134   .8   .1    82      9.01    8800   64    40
i 134   .9   .1    81      9.015   8900   62    45
i 134   1    .1    80      9.02    9000   60    50

Figure 1.60 Another view of the etude5.sco excerpt shown in figure 1.59 in which the ramp ( < ), carry ( . ) and + symbols are replaced by the actual numerical values they represent.

The final score statement that I employ in etude5.sco is the Tempo Statementt, shown in figure 1.61. The Csound score clock runs at 60 beats per minute. By default Csound inserts a tempo statement of 60 (60 beats-per-minute or 1-beat-per-second) at the beginning of every score (t 0 60). Obviously, this means that when you specify a duration of 1 in p3 the note-event will last for 1 second. Luckily the t-statement lets you change this default value of 60 in both a constant and a variable fashion. Figure 1.61 illustrates both uses.

The statement t 0 120 will set a constant tempo of 120 beats per minute. Given this setting, the internal beat-clock will run twice as fast and therefore all time values in the score file will be cut in half.

The statement t 0 120 1 30 is used to set a variable tempo. In this case the tempo is set to 120 at time 0 (twice as fast as indicated in the score) and takes 1 second to gradually move to a new tempo of 30 (twice as slow as indicated in the score). It goes without saying that variable tempo can make your scores much less mechanical and much more musical.

t    0   120              ; FIXED TEMPO STATEMENT: TWICE AS FAST

i 134  0   .1   90     8.09     8000    80   1
i .    +   .    <      8.095    <       <    <
i .    .   .    .      8.10     .       .    .
i .    .   .    .      8.105    .       .    .
i .    .   .    .      8.11     .       .    .
i .    .   .    .      8.115    .       .    .
i .    .   .    .      9.00     .       .    .
i .    .   .    .      9.005    .       .    .
i .    .   .    .      9.01     .       .    .
i .    .   .    .      9.015    .       .    .
i .    .   .    80     9.02     9000    60   50

t      0   120  1      30  ; VARIABLE TEMPO: TWICE AS FAST TO HALF AS FAST
i 134  0   .1   90     8.09     8000    80   1
i .    +   .    <      8.095    <       <    <
i .    .   .    .      8.10     .       .    .
i .    .   .    .      8.105    .       .    .
i .    .   .    .      8.11     .       .    .
i .    .   .    .      8.115    .       .    .
i .    .   .    .      9.00     .       .    .
i .    .   .    .      9.005    .       .    .
i .    .   .    .      9.01     .       .    .
i .    .   .    .      9.015    .       .    .
i .    .   .    80     9.02     9000    60   50

Figure 1.61 An excerpt from the end of etude5.sco in which the tempo statement is used in fixed and variable mode.

Working with Csound's text-based score language can be extremely laborious. In fact it has inspired many a student to learn C programming in order to generate their note-lists algorithmically. Real-time and MIDI are one solution. But taking advantage of Csound's score shortcuts can make your work a lot easier and your sound gestures, phrases and textures a lot more expressive.

Exercises for Etude 5

k/ar               rand     k/xamp[, iseed[,isize]]
ar                 tone     asig, khp[, iskip]
ar                 butterlp asig, kfreq[, iskip]
ar                 butterbp asig, kfreq, kband[, iskip]
ar                 delayr   idlt[, iskip]
ar                 comb     asig, krvt, ilpt[, iskip]
ar                 vdelay   asig, adel, imaxdel [, iskip]
a1[, a2[, a3, a4]] diskin   ifilcod, kpitch[, iskiptim[, iwraparound[, iformat]]]

Global Variables

Until now, we have used only local i-rate, k-rate and a-rate variables. These have been local to the instrument. Local variable are great because you could use the same variable name in separate instruments without ever worrying about the asig or amix data getting corrupted or signals bleeding-through from one instrument to another. In fact, the instr and endin delimiters truly do isolate the signal processing blocks from one another — even if they have the same exact labels and argument names.

However, there are times when you would like to be able to communicate across instruments. This would make it possible to pass the signal from a synthesis instrument to a reverb instrument, similar to the way one routes the signals on a mixing console to the effects units, using aux sends and aux returns. In Csound this same operation is achieved using global variables. Global variables are variables that are accessible by all instruments. And like local variables, global variables are updated at the four basic rates, setup, gi, gk and ga, where:

gi-rate variables are changed and updated at the note rate.

gk-rate variables are changed and updated at the control rate.

ga-rate variables are changed and updated at the audio rate.

Because global variable belong both to all instruments and to none, they must be initialized. A global variable is typically initialized in instrument 0 and filled from within a local instrument. Where is this mysterious instrument 0? Well, instrument 0 is actually the lines in the orchestra file immediately following the header section and before the declaration of the first instr. Thus, in figure 1.62, immediately after the header, in instrument 0, the gacmb and garvb variables (our 2 global FX buses) are cleared and initialized to 0.

sr         =       44100
kr         =       4410
ksmps      =       10
nchnls     =       1

gacmb      init    0
garvb      init    0

Figure 1.62 The two global variables gacmb and garvb are initialized in instrument 0 after the header and before the first instr.

Sound Design Etude 6: Reverb and Panning

Csound Code — etude6.orc, etude6.sco

Let's put the global variable to use and add some external processing to our instruments.

From within instr 137, shown in figures 1.63 and 1.64, the dry signal from loscil is added (mixed) with the wet signal on a separate reverb and echo bus.

asig       loscil    kenv, ifrq, ifun
           out       asig
garvb      =         garvb+(asig*irvbsnd)
gacmb      =         gacmb+(asig*icmbsnd)

Note that the dry signal is still sent out directly, using the out opcode, just as we have from our very first instrument. But in this case that same signal is also globally passed out of the instrument and into two others, in this case instr 198 (echo) and 199 (reverb) as shown in figures 1.63 and 1.64.

Figure 1.63

Figure 1.63 Block diagram for instr 137, 198 and 199, wavetable synthesis instrument (instr 137) and two global effects (instr 198 and 199).

           instr      137          ; GLOBAL COMB/VERB LOSCIL
idur       =          p3
iamp       =          ampdb(p4)
ifrq       =          cpspch(p5)
ifun       =          p6
iatk       =          p7
irel       =          p8
irvbsnd    =          p9
icmbsnd    =          p10
kenv       linen      iamp, iatk, idur, irel
asig       loscil     kenv, ifrq, ifun
           out        asig
garvb      =          garvb+(asig*irvbsnd)
gacmb      =          gacmb+(asig*icmbsnd)
           instr      198          ; GLOBAL ECHO
idur       =          p3
itime      =          p4
iloop      =          p5
kenv       linen      1, .01, idur, .01
acomb      comb       gacmb, itime, iloop, 0
           out        acomb*kenv
gacmb      =          0
           instr      199          ; GLOBAL REVERB
idur       =          p3
irvbtim    =          p4
ihiatn     =          p5
arvb       nreverb    garvb, irvbtim, ihiatn
           out        arvb
garvb      =          0

Figure 1.64 Orchestra code for three instruments that work together to add reverb (instr 199) and echo (instr 198) to a looping oscillator (instr 137).

It is important to note that in the score file (figure 1.65) all three of these instruments must be turned on. In fact, to avoid transient and artifact noises, global instruments are typically left on for the duration of the section and the global variable are always cleared when the receiving instrument is turned off (gacmb = 0 and garvb = 0)

i 199  0     12   4.6         .8

i 198  0     6    10          .8
i 198  0     6    10          .3
i 198  0     6    10          .5

i 137  0     2.1  70    8.09  5       .01  .01  .3      .6
i 137  1     2.1  70    8.09  5       .01  .01  .5

Figure 1.65 Score file for our global comb/nreverb loscil instrument. The global nreverb instrument, instr 199 is turned on at the beginning of the score and left on for the duration of the passage. Three copies of our global comb instrument instr 198 are started simultaneously with different looptimes. Finally, two copies of our loscil instrument, instr 137, start one after another.

Our next instrument, instr 138, shown in figures 1.66 and 1.67 is based on an earlier FM design, but now the instrument has been enhanced with the ability to pan the signal.

Figure 1.66

Figure 1.66 Block diagram of instr 138, a dynamic FM instrument with panning and global reverb.

           instr     138          ; SWEEPING FM WITH VIBRATO & DISCRETE PAN
idur       =         p3
iamp       =         ampdb(p4)
ifrq       =         cpspch(p5)
ifc        =         p6
ifm        =         p7
iatk       =         p8
irel       =         p9
indx1      =         p10
indx2      =         p11
indxtim    =         p12
ilfodep    =         p13
ilfofrq    =         p14
ipan       =         p15
irvbsnd    =         p16
kampenv    expseg    .01, iatk, iamp, idur/9, iamp*.6, idur/(iatk+irel+idur/9),
                     iamp*.7, irel, .01
klfo       oscil     ilfodep, ilfofrq, 1
kindex     expon     indx1, indxtim, indx2
asig       foscil    kampenv, ifrq+klfo, ifc, ifm, kindex, 1
           outs      asig*ipan, asig*(1-ipan)
garvb      =         garvb+(asig*irvbsnd)

Figure 1.67 Orchestra code for instr 138, a dynamic FM instrument with vibrato, discrete panning and global reverb.

You should note that in instr 138 the panning is realized using a single variable that functions like a panning knob on a traditional mixing console. How is this done?

Well, as you know by now, if we multiply a signal by a scalar in a range of 0 to 1 we effectively control the amplitude of the signal between 0 and 100%. So if we simultaneously multiply the signal by the scalar and its inverse we would have two outputs whose amplitudes would be scaleable between 0 and 100% but would be inversely proportional to each other.

For example, if the scalar is at 1 and that corresponds to 1 times the left output, we would have 100% of our signal from the left and (1 - 1) or 0% signal from the right. If on the other hand the amplitude scalar was set to .2, then we would have .2 times left or 20% of our signal coming from the left and 1 - .2 or .8 time the right signal or 80% coming from the right. This algorithm provides a simple means of using a single value to control the left/right strength of a signal and is used in instr 138.orc and instr138.sco and illustrated in figures 1.66 and 1.67.

The file etude6.orc contains four additional globo-spatial instruments. All are based on those presented in previous etudes. You should recognize the algorithms. But all have been enhanced with panning and global reverb capabilities. You are encouraged to block diagram and study them. Each demonstrates a different panning and reverb approach. You are also encouraged to go back and add global reverb and panning to all of the instruments we have studied so far.

To end the chapter I will present instr 141.orc and instr141.sco, shown in figures 1.68 and 1.69, which adapts an earlier amplitude modulation design and adds both global reverb and LFO-based panning.

Figure 1.68

Figure 1.68 Block diagram of instr 141, an Amplitude Modulation instrument with an LFO panner and global reverb.

          instr    141      ; AMPLITUDE MODULATION LFO PANNER
idur      =        p3
iamp      =        ampdb(p4)
ifrq      =        cpspch(p5)
ifun      =        p6
iatk      =        p7
irel      =        p8
iatkfun   =        p9
imodpth   =        p10
imodfrq   =        p11
imodfun   =        p12
ipanfrq   =        p13
irvbsnd   =        p14
kenv      envlpx   iamp, iatk, idur, irel, iatkfun, .7, .01
kpan      oscil    .5, ipanfrq, 1
klfo      oscil    imodpth, imodfrq, imodfun
asig      oscil    klfo*kenv, ifrq, ifun
kpanlfo   =        kpan+.5
          outs     asig*kpanlfo, asig*(1-kpanlfo)
garvb     =        garvb+(asig*irvbsnd)

Figure 1.69 Orchestra code for instr 141, an Amplitude Modulation instrument with an LFO panner and global reverb.

Notice here that the amplitude of the panning LFO is set to .5. This means that this bipolar sinewave has a range of -.5 to +.5. Then notice that I bias this bipolar signal by adding .5 to it (kpanlfo = kpan + .5). This makes the signal unipolar! Now the sinewave goes from 0 to 1 with its center point at .5. And isn't that perfect for our panning knob that needs to be in the range of 0 to 1? Panning envelopes, panning oscillators, and random panners can all be realized with this simple solution!

Exercises for Etude 6

Csound Code — etude6.orc, etude6.sco


In this introductory chapter I have attempted to introduce the syntax of the Csound language while covering some of the elements of sound design. Given this basic understanding, the subsequent chapters of this text, written by the world's leading educators, sound designers, programmers and composers, should serve to unlock the secret power of Csound and help you find the riches buried therein. Along the way, I sincerely hope that you not only discover some exquisite new sounds, but that your work with Csound brings you both a deeper understanding of your current synthesizer hardware and a deeper appreciation and fuller awareness of the nature and spirit of musical sound itself... the language of the soul.


Cage, J. 1976. Silence. Middletown, CT: Wesleyan University Press.

Chadabe, J. 1997. Electric Sound: The Past and Promise of Electronic Music. New York: Prentice Hall.

De Poli, G., A. Piccialli, and C. Roads. 1991. Representations of Musical Signals. Cambridge, MA: M.I.T. Press.

De Poli, G., A. Piccialli, S. T. Pope, Stephen and C. Roads. 1997. Musical Signal Processing. The Netherlands: Swets and Zeitlinger.

Dodge, C. and T. Jerse. 1997. Computer Music. 2nd rev. New York: Schirmer Books.

Eliot, T.S. 1971. Four Quartets. New York: Harcourt Brace & Company.

Mathews, Max V. 1969. The Technology of Computer Music. Cambridge, MA: M.I.T. Press.

Mathews, Max V. and J. R. Pierce. 1989. Current Directions in Computer Music Research. Cambridge, MA: M.I.T. Press.

Moore, R. F. 1990. Elements of Computer Music. New York: Prentice Hall.

Pierce, J. R. 1992. The Science of Musical Sound. 2nd rev. edn. New York: W. H. Freeman.

Pohlmann, Ken C. 1995. Principles of Digital Audio. 3d edn. New York: McGraw-Hill.

Roads, C. 1989.The Music Machine. Cambridge, MA: M.I.T. Press.

Roads, C. 1996. The Computer Music Tutorial. Cambridge, MA: M.I.T. Press.

Roads, C. and J. Strawn. 1987. Foundations of Computer Music. 3d edn. Cambridge, MA: M.I.T. Press.

Steiglitz, K. 1996. A Digital Signal Processing Primer. Reading, MA: Addison-Wesley.
